Stellar XboxHD+ Bundle

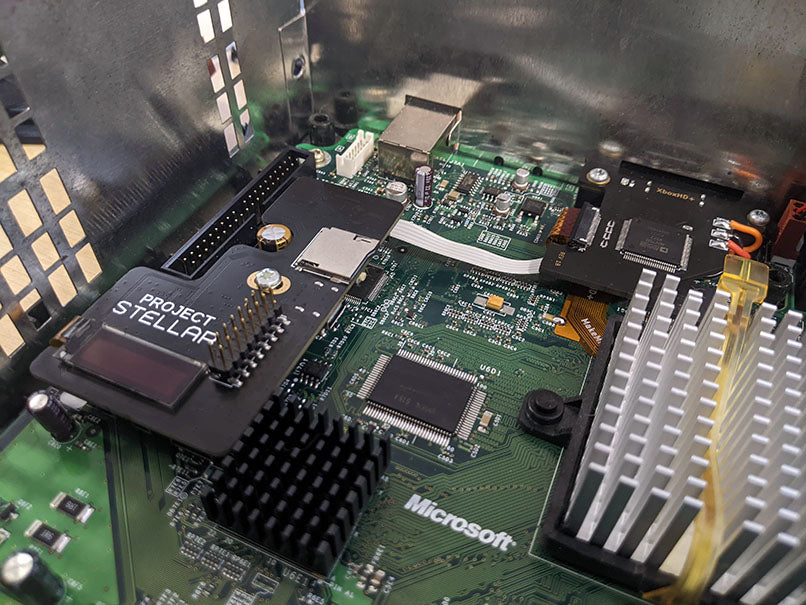

The first and only purely digital video output add-on for the original Microsoft Xbox. Now even better!This kit includes both Project Stellar and XboxHD+ HDMI.
Identifying Xbox Revision
Couldn't load pickup availability
Overview
The first and only purely digital video output add-on for the original Microsoft Xbox. Video is captured directly off of the pixel data bus from the GPU, encoded, and sent directly to your HD TV with no added external interpolation or frame-buffering for a crystal clear, no added lag, video output.
But pixel-perfect video isn't all the XboxHD+ offers. Audio is captured from the Xbox's digital SPDIF audio and output over the HDMI connector, and with the correct receiver allows for 5.1 Dolby Digital audio on select games.
Authorized Retailers
Features
XboxHD+ was designed from the ground up to be the best possible solution for your original Xbox.
New Features Exclusive to Stellar XboxHD+- Redesigned and simplified installation process.
- No more patching of the Xbox BIOS.
- Installation troubleshooting via the Stellar OLED display.
- Fewer wires to solder.
- Re-designed included 3D printed parts for an easier and cleaner install.
- Firmware recovery via the Stellar USB-C interface.
- Pixel perfect digital video. Supports all official Xbox video resolutions. (480i, 480p, 576i, 720p, and 1080i)
- Video upscaling with interpolation options (linear and weighted bilinear).
- Per-game settings with direct integration with XBMC and XBMC4Gamers.
- Crystal clear digital audio with surround-sound and Dolby Digital pass-through.
- Upgradable firmware via our Xbox application for additional future features, bug fixes, etc!
- CEC support.
- Completely reversible! 100% no-cut.
- Optional force 480P. (Force 480i games to run in 480p)
- Optional auto anamorphic widescreen for widescreen 480P content. By default, 16:9 480P content will be stretched to fullscreen as the game intended. Avoid the hassle of having to adjust your TV's zoom/aspect ratio when switch between widescreen and none-widescreen 480P games.
Pixel Perfect Digital Video
Video is captured directly off of the pixel data bus from the GPU, encoded, and sent directly to your HD TV.
Crystal Clear Digital Audio
Crystal clear digital audio with surround-sound and Dolby Digital pass-through.
Upgradable Firmware
The XboxHD+ board features an easy to use firmware update feature that can update the board's software directly from the Xbox.
Kit Contents
- XboxHD+ Board
- Project Stellar
- Stellar interface cable.
- Flex Cable. (Depending on kit choice)
- QSB Board. (1.0 - 1.5 include the QSB+ board and the 1.6 kits include a free LPC QSB rebuild)
- 3D Printed Pieces and Screws.
- Necessary wire.
Screenshots
Resources
FAQ
What's required?
Everything needed to install the XboxHD+ is included in the kit! The Project Stellar board is required to be installed alongside the XboxHD+ but is included and no additional hardware is required.
Does this add lag?
Impossible! The XboxHD+ does not modify or buffer the raw GPU video signal in any way.
How difficult is it to install?
While highly not recommended for beginners, the XboxHD+ is comparable to other console HDMI installs. The installer should be comfortable with micro-soldering.
Do you sell outside of the US?
Yes, we do! We will gladly ship your product anywhere in the world.
